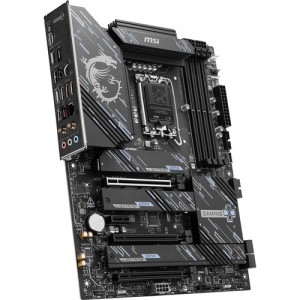

MSI Z890 GAMING PLUS WIFI LGA 1851 ATX specs
Motherboards Specs >> MSI >> MSI Z890 GAMING PLUS WIFI LGA 1851 ATX| Specifications | | | Reviews |
General Specs MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 4866, 4933, 5000, 5066, 5100, 5133, 5200, 5300, 5333, 5400, 5600, 5800, 6000, 6133, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 8933, 9066, 9200 MT/s
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x4
1x PCIe 4.0 x1
2x PCIe 4.0 x4
1x PCIe 4.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
ATX
CPU MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
1x Thunderbolt 4
Display:
1x HDMI
1x DisplayPort
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Intel E5000B 5GbE
PS/2:
1x Combo
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 4866, 4933, 5000, 5066, 5100, 5133, 5200, 5300, 5333, 5400, 5600, 5800, 6000, 6133, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 8933, 9066, 9200 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (M.2)
Internal I/O MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x4
1x PCIe 4.0 x1
2x PCIe 4.0 x4
1x PCIe 4.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
5x 4-Pin System
5x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
Security:
Chassis Intrusion, TPM Header
LED Header:
4x RGB
Diagnostics:
Flash BIOS
Front Panel I/O MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2
Audio MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.4
Module Support:
1 E Key M.2
Software MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard
OS Compatibility:
Windows 11 (64-Bit Only)
Physical MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.60" / 304.8 x 243.84 mm
