MSI Z790 PROJECT ZERO LGA 1700 ATX specs

  Motherboards Specs >> MSI >> MSI Z790 PROJECT ZERO LGA 1700 ATX
Specifications | Reviews

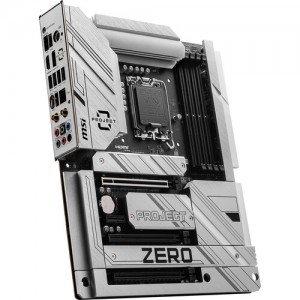

MSI Z790 PROJECT ZERO LGA 1700 ATX



General Specs MSI Z790 PROJECT ZERO LGA 1700 ATX Motherboard

Chipset:
Intel Z790
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 7200 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
3x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16
2x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support (2 x 2)
Form Factor:
ATX

CPU MSI Z790 PROJECT ZERO LGA 1700 ATX Motherboard

Chipset:
Intel Z790
CPU Socket:
LGA 1700

Back Panel I/O MSI Z790 PROJECT ZERO LGA 1700 ATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.2 Gen 2x2)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
Audio:
5x 1/8" / 3.5 mm
Ethernet / Controller:
1x Intel 2.5Gigabit
PS/2:
1x Combo
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback

Memory MSI Z790 PROJECT ZERO LGA 1700 ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 7200 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion MSI Z790 PROJECT ZERO LGA 1700 ATX Motherboard

SATA:?Serial Advanced Technology Attachment
6x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
3x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)

Internal I/O MSI Z790 PROJECT ZERO LGA 1700 ATX Motherboard

Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16
2x PCIe 3.0 x1
USB:?Universal Serial Bus
2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
6x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
Security:
Chassis Intrusion, TPM Header
LED Header:
5x RGB
Diagnostics:
Clear CMOS
Add-On:
1x USB4 Expansion Card Header

BIOS MSI Z790 PROJECT ZERO LGA 1700 ATX Motherboard

ROM:
256 Mb

Front Panel I/O MSI Z790 PROJECT ZERO LGA 1700 ATX Motherboard

Front Panel I/O:
USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio MSI Z790 PROJECT ZERO LGA 1700 ATX Motherboard

Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No

Wireless MSI Z790 PROJECT ZERO LGA 1700 ATX Motherboard

Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4

Software MSI Z790 PROJECT ZERO LGA 1700 ATX Motherboard

OS Compatibility:
Windows

Physical MSI Z790 PROJECT ZERO LGA 1700 ATX Motherboard

Form Factor:
ATX
Dimensions:
9.6 x 12" / 24.4 x 30.5 cm
