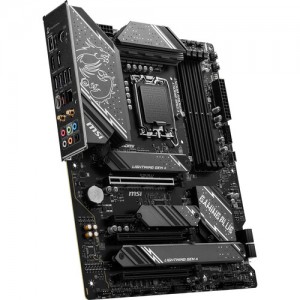

MSI Z790 GAMING PLUS WIFI ATX LGA 1700 specs
Motherboards Specs >> MSI >> MSI Z790 GAMING PLUS WIFI ATX LGA 1700| Specifications | | | Reviews |
General Specs MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4 (x4 mode)
2x PCIe 3.0 x1
1x PCIe 4.0 x4 (x4 mode)
2x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Back Panel I/O MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1 Output
1x DisplayPort Output
1x DisplayPort Output
Audio:
6x 1/8" / 3.5 mm
Ethernet / Controller:
1x Intel 2.5Gigabit
PS/2:
1x PS/2
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment6x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (M.2)
Internal I/O MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4 (x4 mode)
2x PCIe 3.0 x1
1x PCIe 4.0 x4 (x4 mode)
2x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
6x 4-Pin System
6x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
2x 8-Pin ATX
Security:
Chassis Intrusion, TPM Module
LED Header:
8x RGB
Diagnostics:
Clear CMOS
Add-On:
1x USB4 Expansion Card Header
BIOS MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard
ROM:
256 Mb
Front Panel I/O MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard
Front Panel I/O:
AAFP
Audio MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.3
Software MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard
Form Factor:
ATX
Dimensions:
12 x 9.6" / 30.5 x 24.4 cm
