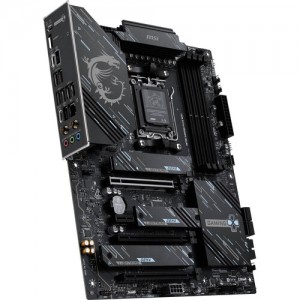

MSI X870E GAMING PLUS WIFI AM5 ATX specs
Motherboards Specs >> MSI >> MSI X870E GAMING PLUS WIFI AM5 ATX| Specifications | | | Reviews |
General Specs MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
Chipset:
AMD X870E
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5600, 8200 MT/s
Storage Slots:
3x M.2 (M Key) 2260, 2280, 22110
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
2x PCIe 3.0 x1
1x PCIe 4.0 x4
2x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Form Factor:
ATX
CPU MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
Chipset:
AMD X870E
CPU Socket:
AM5
Back Panel I/O MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB4)
1x USB-C (USB 3.2 Gen 2x2)
2x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
1x USB-C (USB 3.2 Gen 2x2)
2x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x 5GbE
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5600, 8200 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
3x M.2 (M Key) 2260, 2280, 22110
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5 (M.2)
Internal I/O MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
2x PCIe 3.0 x1
1x PCIe 4.0 x4
2x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
3x USB 2.0 Header (Supports 6 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
3x USB 2.0 Header (Supports 6 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
6x 4-Pin System
6x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
2x 12V-2X6 (12VHPWR)
1x 8-Pin ATX
2x 12V-2X6 (12VHPWR)
Security:
Chassis Intrusion, TPM Module
LED Header:
9x RGB
BIOS MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
ROM:
256 Mb
Front Panel I/O MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
Front Panel I/O:
AAFP, USB 3.1/3.2 Gen 2
Audio MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth:
5.4
Software MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
OS Compatibility:
Windows 11 (64-Bit Only)
Physical MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
Form Factor:
ATX
Dimensions:
9.6 x 12" / 243.8 x 304.8 mm
