MSI PRO Z890-S WIFI WHITE LGA 1851 ATX specs

  Motherboards Specs >> MSI >> MSI PRO Z890-S WIFI WHITE LGA 1851 ATX
Specifications | Reviews

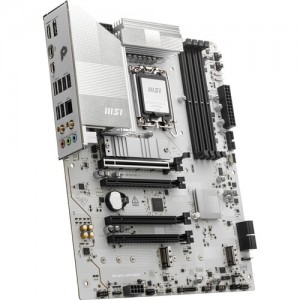

MSI PRO Z890-S WIFI WHITE LGA 1851 ATX



General Specs MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard

Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8800 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x4
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Form Factor:
ATX

CPU MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard

Chipset:
Intel Z890
CPU Socket:
LGA 1851

Back Panel I/O MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.2 Gen 2x2)
6x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt:
1x Thunderbolt 4
Display:
1x HDMI
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x 2.5Gigabit
Wi-Fi Antenna:
2x Connector

Memory MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8800 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5 (M.2)

Internal I/O MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard

Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x4
1x PCIe 3.0 x1
USB:?Universal Serial Bus
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
1x 8-Pin CPU
Security:
Chassis Intrusion, TPM Module
LED Header:
8x RGB
Diagnostics:
Clear CMOS

BIOS MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard

ROM:
256 Mb

Audio MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard

Audio Codec:
Realtek (7.1-Channel)
DAC:
No

Wireless MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard

Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth:
5.4

Physical MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard

Form Factor:
ATX
Dimensions:
12 x 9.6" / 304.8 x 243.8 mm
