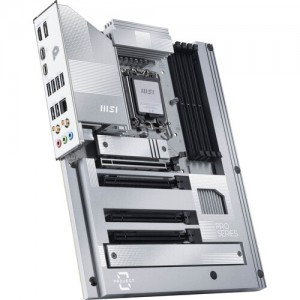

MSI PRO Z890-S WIFI PZ LGA 1851 ATX (White) specs
Motherboards Specs >> MSI >> MSI PRO Z890-S WIFI PZ LGA 1851 ATX (White)| Specifications | | | Reviews |
General Specs MSI PRO Z890-S WIFI PZ LGA 1851 ATX Motherboard (White)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x4
1x PCIe 3.0 x1
2x PCIe 4.0 x4
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU MSI PRO Z890-S WIFI PZ LGA 1851 ATX Motherboard (White)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O MSI PRO Z890-S WIFI PZ LGA 1851 ATX Motherboard (White)
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
6x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
6x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt:
1x Thunderbolt 4
Display:
1x HDMI
1x DisplayPort
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Memory MSI PRO Z890-S WIFI PZ LGA 1851 ATX Motherboard (White)
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI PRO Z890-S WIFI PZ LGA 1851 ATX Motherboard (White)
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5 (M.2)
RAID 0, 1, 5 (M.2)
Internal I/O MSI PRO Z890-S WIFI PZ LGA 1851 ATX Motherboard (White)
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x4
1x PCIe 3.0 x1
2x PCIe 4.0 x4
1x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
1x 8-Pin ATX
2x 8-Pin CPU
1x 8-Pin ATX
Security:
Chassis Intrusion, TPM Module
LED Header:
8x RGB
Diagnostics:
Clear CMOS
BIOS MSI PRO Z890-S WIFI PZ LGA 1851 ATX Motherboard (White)
ROM:
256 Mb
Front Panel I/O MSI PRO Z890-S WIFI PZ LGA 1851 ATX Motherboard (White)
Front Panel I/O:
AAFP, USB 3.2 Gen 2x2
Audio MSI PRO Z890-S WIFI PZ LGA 1851 ATX Motherboard (White)
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless MSI PRO Z890-S WIFI PZ LGA 1851 ATX Motherboard (White)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Software MSI PRO Z890-S WIFI PZ LGA 1851 ATX Motherboard (White)
OS Compatibility:
Windows
Physical MSI PRO Z890-S WIFI PZ LGA 1851 ATX Motherboard (White)
Form Factor:
ATX
Dimensions:
12 x 9.6" / 304.8 x 243.8 mm
