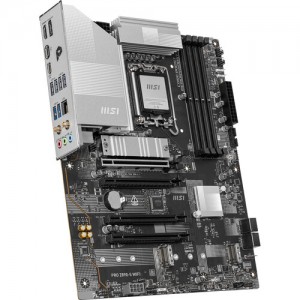

MSI PRO Z890-S WIFI LGA 1851 ATX specs
Motherboards Specs >> MSI >> MSI PRO Z890-S WIFI LGA 1851 ATX| Specifications | | | Reviews |
General Specs MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 4866, 4933, 5000, 5066, 5100, 5133, 5200, 5300, 5333, 5400, 5600, 5800, 6000, 6133, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
2x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
ATX
CPU MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
6x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
6x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt:
1x Thunderbolt 4
Display:
1x HDMI 2.1
1x DisplayPort 1.4
1x DisplayPort 1.4
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 8125D 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Memory MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 4866, 4933, 5000, 5066, 5100, 5133, 5200, 5300, 5333, 5400, 5600, 5800, 6000, 6133, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (SATA)
Internal I/O MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
2x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
1x 8-Pin ATX
2x 8-Pin CPU
1x 8-Pin ATX
Security:
Chassis Intrusion, TPM Header
LED Header:
4x RGB
Audio:
1x Speaker
Diagnostics:
2-Digit Debug LED, Clear CMOS, Flash BIOS
Add-On:
1x Tuning Controller
1x Thunderbolt Header
1x Thunderbolt Header
BIOS MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
ROM:
256 Mb
Front Panel I/O MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2
Audio MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.4
Module Support:
1 E Key M.2
Software MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
OS Compatibility:
Windows 11 (64-Bit Only)
Physical MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.60" / 304.8 x 243.84 mm
