MSI PRO Z890-P WIFI LGA 1851 ATX specs

  Motherboards Specs >> MSI >> MSI PRO Z890-P WIFI LGA 1851 ATX
Specifications | Reviews

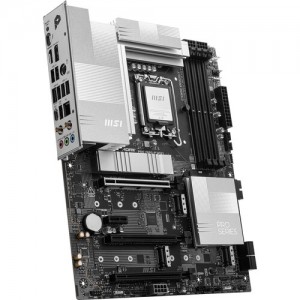

MSI PRO Z890-P WIFI LGA 1851 ATX



General Specs MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard

Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 4866, 4933, 5000, 5066, 5100, 5133, 5200, 5300, 5333, 5400, 5600, 5800, 6000, 6133, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 8933, 9066, 9200 MT/s
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
ATX

CPU MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard

Chipset:
Intel Z890
CPU Socket:
LGA 1851

Back Panel I/O MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
1x Thunderbolt 4
Display:
1x HDMI 2.1
1x DisplayPort 1.4
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 8126 5GbE
PS/2:
1x PS/2
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback

Memory MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 4866, 4933, 5000, 5066, 5100, 5133, 5200, 5300, 5333, 5400, 5600, 5800, 6000, 6133, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 8933, 9066, 9200 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (SATA)

Internal I/O MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard

Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x1 mode)
USB:?Universal Serial Bus
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
1x 8-Pin ATX
Security:
Chassis Intrusion, TPM Header
LED Header:
4x RGB
Audio:
No
Diagnostics:
Clear CMOS, Flash BIOS
Add-On:
1x Thunderbolt Card Header

Front Panel I/O MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard

Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2

Audio MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard

Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No

Wireless MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard

Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.4
Module Support:
1 E Key M.2

Software MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard

OS Compatibility:
Windows 11 (64-Bit Only)

Physical MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard

Form Factor:
ATX
Dimensions:
12.0 x 9.60" / 304.8 x 243.84 mm
