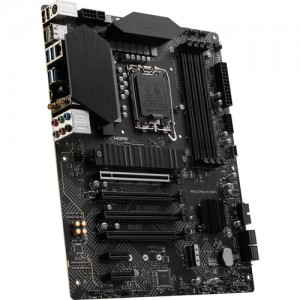

MSI PRO Z790-VC WIFI LGA 1700 ATX specs
Motherboards Specs >> MSI >> MSI PRO Z790-VC WIFI LGA 1700 ATX| Specifications | | | Reviews |
General Specs MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
Expansion Slots:
1x PCIe 5.0 x16 (x16 mode)
2x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x16 (x4 mode)
2x PCIe 3.0 x1
2x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x16 (x4 mode)
2x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Back Panel I/O MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
1x DisplayPort
Audio:
6x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek RTL8125BG 2.5Gigabit
PS/2:
1x Combo
Memory MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
RAID Support:
No
Internal I/O MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16 (x16 mode)
2x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x16 (x4 mode)
2x PCIe 3.0 x1
2x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x16 (x4 mode)
2x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
Security:
Chassis Intrusion, TPM Header
LED Header:
4x RGB
Front Panel I/O MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard
Front Panel I/O:
AAFP
Audio MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Software MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard
Form Factor:
ATX
Dimensions:
9.6 x 12" / 24.4 x 30.5 cm
