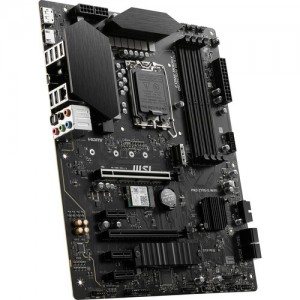

MSI PRO Z790-S WIFI LGA 1700 ATX specs
Motherboards Specs >> MSI >> MSI PRO Z790-S WIFI LGA 1700 ATX| Specifications | | | Reviews |
General Specs MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
Expansion Slots:
1x PCIe 5.0 x16 (x16 mode)
1x PCIe 3.0 x16 (x4 mode)
3x PCIe 3.0 x1
1x PCIe 3.0 x16 (x4 mode)
3x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
ATX
CPU MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Back Panel I/O MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
1x DisplayPort
Audio:
5x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Realtek RTL8125BG 2.5Gigabit
Memory MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
RAID Support:
RAID 0, 1, 5, 10 (SATA)
Internal I/O MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16 (x16 mode)
1x PCIe 3.0 x16 (x4 mode)
3x PCIe 3.0 x1
1x PCIe 3.0 x16 (x4 mode)
3x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
Security:
Chassis Intrusion, TPM Header
LED Header:
4x RGB
BIOS MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard
ROM:
256 Mb
Front Panel I/O MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard
Front Panel I/O:
AAFP
Audio MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.3
Software MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard
Form Factor:
ATX
Dimensions:
9.6 x 12" / 24.4 x 30.5 cm
