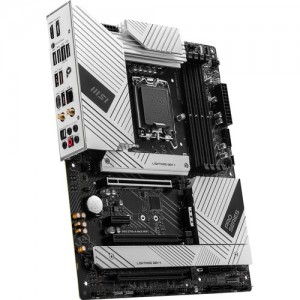

MSI PRO Z790-A MAX WIFI ATX specs
Motherboards Specs >> MSI >> MSI PRO Z790-A MAX WIFI ATX| Specifications | | | Reviews |
General Specs MSI PRO Z790-A MAX WIFI ATX Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 6400, 6600, 7800 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 5.0 x16 (x16 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
ATX
CPU MSI PRO Z790-A MAX WIFI ATX Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Back Panel I/O MSI PRO Z790-A MAX WIFI ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
3x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
3x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
1x DisplayPort
Audio:
5x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory MSI PRO Z790-A MAX WIFI ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 6400, 6600, 7800 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI PRO Z790-A MAX WIFI ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment6x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (M.2)
Internal I/O MSI PRO Z790-A MAX WIFI ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16 (x16 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
6x 4-Pin System
6x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
Security:
Chassis Intrusion, TPM Module
LED Header:
8x RGB
Diagnostics:
Clear CMOS
Add-On:
1x USB4 Expansion Card Header
BIOS MSI PRO Z790-A MAX WIFI ATX Motherboard
ROM:
256 Mb
Front Panel I/O MSI PRO Z790-A MAX WIFI ATX Motherboard
Front Panel I/O:
AAFP
Audio MSI PRO Z790-A MAX WIFI ATX Motherboard
Audio Codec:
Realtek ALC4080 (7.1-Channel)
DAC:
No
Wireless MSI PRO Z790-A MAX WIFI ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.4
Software MSI PRO Z790-A MAX WIFI ATX Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical MSI PRO Z790-A MAX WIFI ATX Motherboard
Form Factor:
ATX
Dimensions:
9.6 x 12" / 24.4 x 30.5 cm
