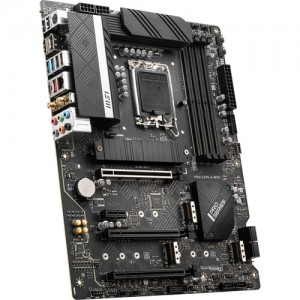

General Specs MSI PRO Z690-A WIFI LGA 1700 ATX Motherboard
Chipset:
Intel Z690
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4000, 4800, 5400, 6400 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Form Factor:
ATX
CPU MSI PRO Z690-A WIFI LGA 1700 ATX Motherboard
Chipset:
Intel Z690
CPU Socket:
LGA 1700
Back Panel I/O MSI PRO Z690-A WIFI LGA 1700 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1 Output
1x DisplayPort 1.4 Output
1x DisplayPort 1.4 Output
Audio:
6x 1/8" / 3.5 mm
Ethernet / Controller:
1x Intel I225-V 2.5Gigabit
PS/2:
1x PS/2
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory MSI PRO Z690-A WIFI LGA 1700 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4000, 4800, 5400, 6400 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI PRO Z690-A WIFI LGA 1700 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment6x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
U.2:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5 (M.2)
RAID 0, 1, 5 (M.2)
Internal I/O MSI PRO Z690-A WIFI LGA 1700 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
6x 4-Pin System
6x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 4-Pin ATX
2x 4-Pin ATX
Security:
Chassis Intrusion, TPM Header
Diagnostics:
2-Digit Debug LED
Front Panel I/O MSI PRO Z690-A WIFI LGA 1700 ATX Motherboard
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio MSI PRO Z690-A WIFI LGA 1700 ATX Motherboard
Audio Codec:
Realtek ALC897 (8-Channel)
Wireless MSI PRO Z690-A WIFI LGA 1700 ATX Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Bluetooth:
5.2
Module Support:
1 E Key M.2
Software MSI PRO Z690-A WIFI LGA 1700 ATX Motherboard
OS Compatibility:
Windows 10
Windows 11
Windows 11
Physical MSI PRO Z690-A WIFI LGA 1700 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
