MSI PRO B860M-A WIFI LGA 1851 mATX specs

  Motherboards Specs >> MSI >> MSI PRO B860M-A WIFI LGA 1851 mATX
Specifications | Reviews

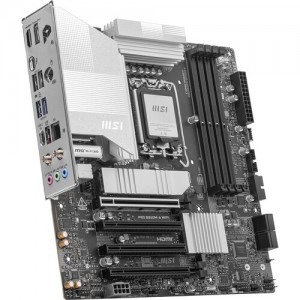

MSI PRO B860M-A WIFI LGA 1851 mATX



General Specs MSI PRO B860M-A WIFI LGA 1851 mATX Motherboard

Chipset:
Intel B860
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8800 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
2x PCIe 4.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Form Factor:
Micro-ATX

CPU MSI PRO B860M-A WIFI LGA 1851 mATX Motherboard

Chipset:
Intel B860
CPU Socket:
LGA 1851

Back Panel I/O MSI PRO B860M-A WIFI LGA 1851 mATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.0 / 3.1/3.2 Gen 1)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 2.0)
Thunderbolt:
1x Thunderbolt 4
Display:
1x HDMI
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
No
Wi-Fi Antenna:
2x Connector

Memory MSI PRO B860M-A WIFI LGA 1851 mATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8800 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion MSI PRO B860M-A WIFI LGA 1851 mATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x2)
RAID Support:
RAID 0, 1, 5, 10 (SATA)

Internal I/O MSI PRO B860M-A WIFI LGA 1851 mATX Motherboard

Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
2x PCIe 4.0 x1
USB:?Universal Serial Bus
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
1x 4-Pin ATX
Security:
Chassis Intrusion, TPM Module
LED Header:
7x RGB

BIOS MSI PRO B860M-A WIFI LGA 1851 mATX Motherboard

ROM:
256 Mb

Front Panel I/O MSI PRO B860M-A WIFI LGA 1851 mATX Motherboard

Front Panel I/O:
AAFP

Audio MSI PRO B860M-A WIFI LGA 1851 mATX Motherboard

Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No

Wireless MSI PRO B860M-A WIFI LGA 1851 mATX Motherboard

Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth:
5.4

Software MSI PRO B860M-A WIFI LGA 1851 mATX Motherboard

OS Compatibility:
Windows

Physical MSI PRO B860M-A WIFI LGA 1851 mATX Motherboard

Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 243.8 x 243.8 mm
