MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX specs

  Motherboards Specs >> MSI >> MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX
Specifications | Reviews

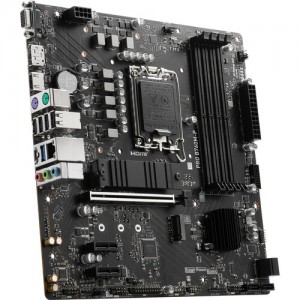

MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX



General Specs MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard

Chipset:
Intel B760
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 6000, 6400, 6800 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 4.0 x16
2x PCIe 4.0 x1
Wi-Fi:
No
Form Factor:
Micro-ATX

CPU MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard

Chipset:
Intel B760
CPU Socket:
LGA 1700

Back Panel I/O MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
1x VGA
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Gigabit
PS/2:
2x PS/2

Memory MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 6000, 6400, 6800 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)

Internal I/O MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard

Expansion Slots:
1x PCIe 4.0 x16
2x PCIe 4.0 x1
USB:?Universal Serial Bus
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
Air Cooling:
1x 4-Pin CPU
2x 4-Pin System
Power Connectors:
1x 24-Pin Mainboard
1x 12V-2X6 (12VHPWR)
Security:
Chassis Intrusion, TPM Module
LED Header:
4x RGB
Diagnostics:
Clear CMOS

BIOS MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard

ROM:
256 Mb

Front Panel I/O MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard

Front Panel I/O:
AAFP

Audio MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard

Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No

Wireless MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard

Wi-Fi:
No
Bluetooth:
No

Software MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard

OS Compatibility:
Windows

Physical MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard

Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 243.8 x 243.8 mm
