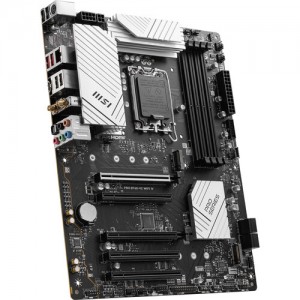

MSI PRO B760-VC WIFI IV LGA 1700 ATX (Silver) specs
Motherboards Specs >> MSI >> MSI PRO B760-VC WIFI IV LGA 1700 ATX (Silver)| Specifications | | | Reviews |
General Specs MSI PRO B760-VC WIFI IV LGA 1700 ATX Motherboard (Silver)
Chipset:
Intel B760
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 6000, 6400, 7000 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 4.0 x16 (x4 mode)
3x PCIe 3.0 x16 (x1 mode)
1x PCIe 4.0 x16 (x4 mode)
3x PCIe 3.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU MSI PRO B760-VC WIFI IV LGA 1700 ATX Motherboard (Silver)
Chipset:
Intel B760
CPU Socket:
LGA 1700
Back Panel I/O MSI PRO B760-VC WIFI IV LGA 1700 ATX Motherboard (Silver)
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
No
Audio:
1x S/PDIF
5x 1/8" / 3.5 mm
5x 1/8" / 3.5 mm
Ethernet / Controller:
1x 2.5Gigabit
PS/2:
1x PS/2
Wi-Fi Antenna:
2x Connector
Memory MSI PRO B760-VC WIFI IV LGA 1700 ATX Motherboard (Silver)
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 6000, 6400, 7000 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI PRO B760-VC WIFI IV LGA 1700 ATX Motherboard (Silver)
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
Internal I/O MSI PRO B760-VC WIFI IV LGA 1700 ATX Motherboard (Silver)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 4.0 x16 (x4 mode)
3x PCIe 3.0 x16 (x1 mode)
1x PCIe 4.0 x16 (x4 mode)
3x PCIe 3.0 x16 (x1 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
5x 4-Pin System
5x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 4-Pin ATX
1x 8-Pin ATX
1x 4-Pin ATX
Security:
Chassis Intrusion, TPM Module
LED Header:
7x RGB
Audio:
No
Diagnostics:
BIOS Selection
BIOS MSI PRO B760-VC WIFI IV LGA 1700 ATX Motherboard (Silver)
ROM:
256 Mb
Front Panel I/O MSI PRO B760-VC WIFI IV LGA 1700 ATX Motherboard (Silver)
Front Panel I/O:
AAFP
Audio MSI PRO B760-VC WIFI IV LGA 1700 ATX Motherboard (Silver)
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless MSI PRO B760-VC WIFI IV LGA 1700 ATX Motherboard (Silver)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Software MSI PRO B760-VC WIFI IV LGA 1700 ATX Motherboard (Silver)
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical MSI PRO B760-VC WIFI IV LGA 1700 ATX Motherboard (Silver)
Form Factor:
ATX
Dimensions:
9.6 x 12" / 24.4 x 30.5 cm
