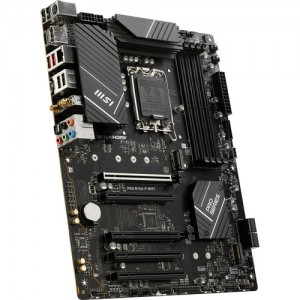

MSI PRO B760-P WIFI LGA 1700 ATX specs
Motherboards Specs >> MSI >> MSI PRO B760-P WIFI LGA 1700 ATX| Specifications | | | Reviews |
General Specs MSI PRO B760-P WIFI LGA 1700 ATX Motherboard
Chipset:
Intel B760
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 4.0 x4
3x PCIe 3.0 x1
1x PCIe 4.0 x4
3x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
ATX
CPU MSI PRO B760-P WIFI LGA 1700 ATX Motherboard
Chipset:
Intel B760
CPU Socket:
LGA 1700
Back Panel I/O MSI PRO B760-P WIFI LGA 1700 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1 Output
1x DisplayPort 1.4 Output
1x DisplayPort 1.4 Output
Audio:
1x S/PDIF
5x 1/8" / 3.5 mm
5x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek RTL8125BG 2.5Gigabit
PS/2:
1x PS/2
Wi-Fi Antenna:
2x Connector
Memory MSI PRO B760-P WIFI LGA 1700 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI PRO B760-P WIFI LGA 1700 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
Internal I/O MSI PRO B760-P WIFI LGA 1700 ATX Motherboard
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 4.0 x4
3x PCIe 3.0 x1
1x PCIe 4.0 x4
3x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
5x 4-Pin System
5x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 4-Pin ATX
1x 8-Pin ATX
1x 4-Pin ATX
Security:
Chassis Intrusion, TPM Module, TPM Header
LED Header:
3x RGB
Audio:
1x S/PDIF
Add-On:
1x Thunderbolt Header
Legacy:
1x Serial
1x Parallel
1x Parallel
Front Panel I/O MSI PRO B760-P WIFI LGA 1700 ATX Motherboard
Front Panel I/O:
USB 3.0 / 3.1/3.2 Gen 1
Audio MSI PRO B760-P WIFI LGA 1700 ATX Motherboard
Audio Codec:
Realtek ALC897 (7.1-Channel)
Wireless MSI PRO B760-P WIFI LGA 1700 ATX Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.3
Module Support:
1 E Key M.2
Software MSI PRO B760-P WIFI LGA 1700 ATX Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical MSI PRO B760-P WIFI LGA 1700 ATX Motherboard
Form Factor:
ATX
Dimensions:
9.60 x 12.0" / 243.84 x 304.8 mm
