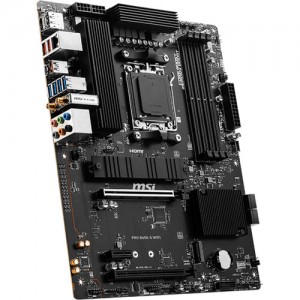

MSI PRO B650-S WIFI ATX specs
Motherboards Specs >> MSI >> MSI PRO B650-S WIFI ATX| Specifications | | | Reviews |
General Specs MSI PRO B650-S WIFI ATX Motherboard
Chipset:
AMD B650
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 7000, 7200 MT/s
Storage Slots:
1x (PCIe 4.0 x4)
1x (PCIe 4.0 x4)
1x (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x1 (x1 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x1 (x1 mode)
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Form Factor:
ATX
CPU MSI PRO B650-S WIFI ATX Motherboard
Chipset:
AMD B650
CPU Socket:
AM5
Back Panel I/O MSI PRO B650-S WIFI ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
3x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
3x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
1x DisplayPort
Audio:
6x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 8125BG 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory MSI PRO B650-S WIFI ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 7000, 7200 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI PRO B650-S WIFI ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x (PCIe 4.0 x4)
1x (PCIe 4.0 x4)
1x (PCIe 4.0 x4)
RAID Support:
RAID 0, 1 (M.2)
RAID 0, 1 (SATA)
RAID 0, 1 (SATA)
Internal I/O MSI PRO B650-S WIFI ATX Motherboard
Expansion Slots:
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x1 (x1 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x1 (x1 mode)
USB:Universal Serial Bus
Universal Serial Bus4x USB 2.0 Header (Supports 1 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
Security:
TPM Header
LED Header:
4x RGB
Audio:
1x Speaker
Audio MSI PRO B650-S WIFI ATX Motherboard
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless MSI PRO B650-S WIFI ATX Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Bluetooth:
5.3
Software MSI PRO B650-S WIFI ATX Motherboard
OS Compatibility:
Windows 10 (64-Bit Only)
Windows 11 (64-Bit Only)
Windows 11 (64-Bit Only)
Physical MSI PRO B650-S WIFI ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.60" / 304.8 x 243.84 mm
