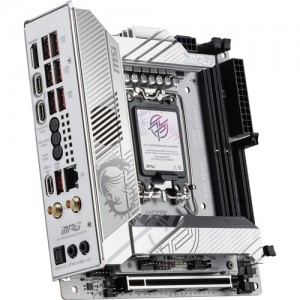

MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX (White) specs
Motherboards Specs >> MSI >> MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX (White)| Specifications | | | Reviews |
General Specs MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard (White)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 8600 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
2x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Form Factor:
Mini-ITX
CPU MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard (White)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard (White)
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
7x USB-A (USB 3.1/3.2 Gen 2)
7x USB-A (USB 3.1/3.2 Gen 2)
Thunderbolt:
2x Thunderbolt 4
Display:
1x HDMI
Audio:
2x 1/8" / 3.5 mm
Ethernet / Controller:
1x Intel E5000B 5GbE
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard (White)
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 8600 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard (White)
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment2x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
2x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5 (SATA)
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (M.2)
Internal I/O MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard (White)
Expansion Slots:
1x PCIe 5.0 x16
USB:Universal Serial Bus
Universal Serial Bus1x USB 2.0 Header (Supports 2 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
1x 4-Pin System
1x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
1x 8-Pin CPU
Security:
Chassis Intrusion, TPM Module
LED Header:
5x RGB
Front Panel I/O MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard (White)
Front Panel I/O:
AAFP
Audio MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard (White)
Audio Codec:
Realtek ALC4080 (7.1-Channel)
DAC:
No
Wireless MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard (White)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth:
5.4
Software MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard (White)
OS Compatibility:
Windows 11 (64-Bit Only)
Physical MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard (White)
Form Factor:
Mini-ITX
Dimensions:
6.7 x 6.7" / 170.2 x 170.2 mm
