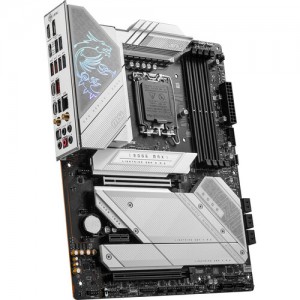

MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 ATX Gaming specs
Motherboards Specs >> MSI >> MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 ATX Gaming| Specifications | | | Reviews |
General Specs MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 ATX Gaming Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MT/s
Storage Slots:
2x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 3.0 x1
1x PCIe 4.0 x4
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
ATX
CPU MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 ATX Gaming Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Back Panel I/O MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 ATX Gaming Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
1x USB-C (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
1x USB-C (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt:
No
Display:
1x HDMI Output
1x DisplayPort Output
1x DisplayPort Output
Audio:
4x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 ATX Gaming Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 ATX Gaming Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment8x SATA III
Storage Slots:
2x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (M.2)
Internal I/O MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 ATX Gaming Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 3.0 x1
1x PCIe 4.0 x4
1x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
6x 4-Pin System
6x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
Security:
Chassis Intrusion, TPM Header
LED Header:
4x RGB
Add-On:
1x USB4 Expansion Card Header
Front Panel I/O MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 ATX Gaming Motherboard
Front Panel I/O:
AAFP
Audio MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 ATX Gaming Motherboard
Audio Codec:
Realtek ALC4080 (7.1-Channel)
DAC:
No
Wireless MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 ATX Gaming Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.4
Software MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 ATX Gaming Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 ATX Gaming Motherboard
Form Factor:
ATX
Dimensions:
9.6 x 12.0" / 243.8 x 304.8 mm
