MSI MPG Z790 CARBON MAX WIFI LGA 1700 ATX specs

  Motherboards Specs >> MSI >> MSI MPG Z790 CARBON MAX WIFI LGA 1700 ATX
Specifications | Reviews

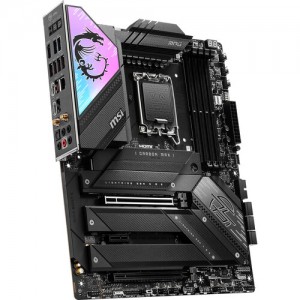

MSI MPG Z790 CARBON MAX WIFI LGA 1700 ATX



General Specs MSI MPG Z790 CARBON MAX WIFI LGA 1700 ATX Motherboard

Chipset:
Intel Z790
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 7800 MT/s
Storage Slots:
3x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Form Factor:
ATX

CPU MSI MPG Z790 CARBON MAX WIFI LGA 1700 ATX Motherboard

Chipset:
Intel Z790
CPU Socket:
LGA 1700

Back Panel I/O MSI MPG Z790 CARBON MAX WIFI LGA 1700 ATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.2 Gen 2x2)
1x USB-C (USB 3.1/3.2 Gen 2)
6x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt:
No
Display:
1x HDMI
Audio:
5x 1/8" / 3.5 mm
1x S/PDIF
Ethernet / Controller:
1
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS

Memory MSI MPG Z790 CARBON MAX WIFI LGA 1700 ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 7800 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion MSI MPG Z790 CARBON MAX WIFI LGA 1700 ATX Motherboard

SATA:?Serial Advanced Technology Attachment
6x SATA III
Storage Slots:
3x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)

Internal I/O MSI MPG Z790 CARBON MAX WIFI LGA 1700 ATX Motherboard

Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x1
USB:?Universal Serial Bus
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
5x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
Security:
Chassis Intrusion, TPM Module
LED Header:
11x RGB
Diagnostics:
Clear CMOS

BIOS MSI MPG Z790 CARBON MAX WIFI LGA 1700 ATX Motherboard

ROM:
256 Mb

Front Panel I/O MSI MPG Z790 CARBON MAX WIFI LGA 1700 ATX Motherboard

Front Panel I/O:
AAFP

Audio MSI MPG Z790 CARBON MAX WIFI LGA 1700 ATX Motherboard

Audio Codec:
Realtek ALC4080 (7.1-Channel)
DAC:
No

Wireless MSI MPG Z790 CARBON MAX WIFI LGA 1700 ATX Motherboard

Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth:
5.4

Physical MSI MPG Z790 CARBON MAX WIFI LGA 1700 ATX Motherboard

Form Factor:
ATX
Dimensions:
9.6 x 12" / 243.8 x 304.8 mm
