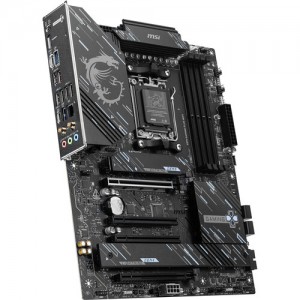

MSI MPG B850 EDGE TI WIFI AM5 ATX specs
Motherboards Specs >> MSI >> MSI MPG B850 EDGE TI WIFI AM5 ATX| Specifications | | | Reviews |
General Specs MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
Chipset:
AMD X870
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8200 MT/s
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 3.0 x16 (x1 mode)
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 3.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
Chipset:
AMD X870
CPU Socket:
AM5
Back Panel I/O MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB4)
1x USB-C (USB 3.2 Gen 2x2)
2x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
1x USB-C (USB 3.2 Gen 2x2)
2x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 8126VB 5GbE
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8200 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2)
RAID Support:
RAID 0, 1 (M.2)
Internal I/O MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 3.0 x16 (x1 mode)
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 3.0 x16 (x1 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
6x 4-Pin System
6x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
3x 8-Pin ATX
3x 8-Pin ATX
Security:
Chassis Intrusion, TPM Module
LED Header:
8x RGB
Diagnostics:
Clear CMOS
BIOS MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
ROM:
256 Mb
Front Panel I/O MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
Front Panel I/O:
AAFP
Audio MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Software MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
OS Compatibility:
Windows
Physical MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
Form Factor:
ATX
Dimensions:
9.6 x 12" / 243.8 x 304.8 mm
