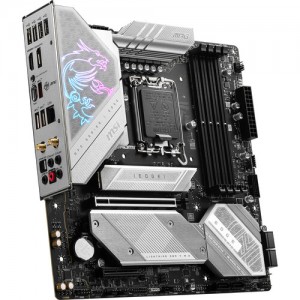

MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX specs
Motherboards Specs >> MSI >> MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX| Specifications | | | Reviews |
General Specs MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard
Chipset:
Intel B760
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 3.0 x4
1x PCIe 3.0 x4
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Form Factor:
Micro-ATX
CPU MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard
Chipset:
Intel B760
CPU Socket:
LGA 1700
Back Panel I/O MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
3x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
3x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
1x DisplayPort 1.4
Audio:
5x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
Clear CMOS
Memory MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment6x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
RAID Support:
RAID 0, 1, 5, 10 (SATA)
Internal I/O MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 3.0 x4
1x PCIe 3.0 x4
USB:Universal Serial Bus
Universal Serial Bus2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
Security:
Chassis Intrusion, TPM Header
LED Header:
3x RGB
Add-On:
1x Thunderbolt Header
1x Tuning Controller
1x USB4 Expansion Card Header
1x Tuning Controller
1x USB4 Expansion Card Header
Front Panel I/O MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Bluetooth:
5.3
Software MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.60 x 9.60" / 243.84 x 243.84 mm
