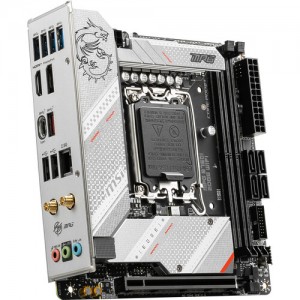

MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX specs
Motherboards Specs >> MSI >> MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX| Specifications | | | Reviews |
General Specs MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard
Chipset:
Intel B760
CPU Socket:
LGA 1700
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
Mini-ITX
CPU MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard
Chipset:
Intel B760
CPU Socket:
LGA 1700
Back Panel I/O MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1 Output
1x DisplayPort 1.4 Output
1x DisplayPort 1.4 Output
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Memory MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s
Maximum Capacity:
96 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
Internal I/O MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling:
1x 4-Pin CPU
1x 4-Pin System
1x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 8-Pin ATX
Security:
Chassis Intrusion, TPM Module
LED Header:
6x RGB
Diagnostics:
Clear CMOS
Audio MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.3
Software MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard
Form Factor:
Mini-ITX
Dimensions:
6.7 x 6.7" / 17.0 x 17.0 cm
