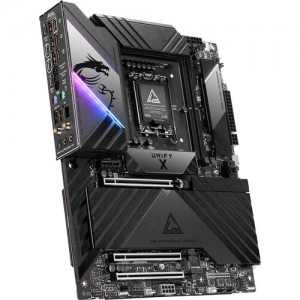

MSI MEG Z890 UNIFY-X LGA 1851 ATX specs
Motherboards Specs >> MSI >> MSI MEG Z890 UNIFY-X LGA 1851 ATX| Specifications | | | Reviews |
General Specs MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 9600 MT/s
Storage Slots:
3x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
ATX
CPU MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus2x USB-C (USB 3.1/3.2 Gen 2)
8x USB-A (USB 3.1/3.2 Gen 2)
8x USB-A (USB 3.1/3.2 Gen 2)
Thunderbolt:
2x Thunderbolt 4
Display:
No
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Intel 5GbE
PS/2:
2x PS/2
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 9600 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment6x SATA III
Storage Slots:
3x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10
Internal I/O MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
1x 8-Pin CPU
1x 6-Pin ATX
2x 8-Pin ATX
1x 8-Pin CPU
1x 6-Pin ATX
Security:
Chassis Intrusion, TPM Header
LED Header:
9x RGB
Audio:
1x Speaker
Diagnostics:
2-Digit Debug LED
Add-On:
1x Tuning Controller
1x Thunderbolt Header
1x Thunderbolt Header
BIOS MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
ROM:
2x 256 Mb
Front Panel I/O MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2
Audio MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
Audio Codec:
Realtek ALC4080 (7.1-Channel)
DAC:
No
Wireless MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.4
Physical MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
Form Factor:
ATX
Dimensions:
9.6 x 12" / 243.8 x 304.8 mm
