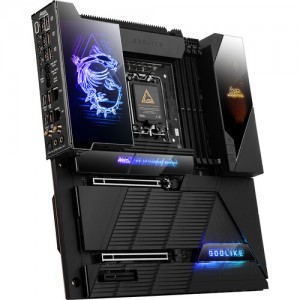

MSI MEG Z890 GODLIKE LGA 1851 E-ATX specs
Motherboards Specs >> MSI >> MSI MEG Z890 GODLIKE LGA 1851 E-ATX| Specifications | | | Reviews |
General Specs MSI MEG Z890 GODLIKE LGA 1851 E-ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 MT/s
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2280 (PCIe 5.0 x4, PCIe 4.0 x4)
2x M.2 (M Key) 2580 (PCIe 5.0 x4)
2x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2280 (PCIe 5.0 x4, PCIe 4.0 x4)
2x M.2 (M Key) 2580 (PCIe 5.0 x4)
Expansion Slots:
2x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 4.0 x4
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
E-ATX
CPU MSI MEG Z890 GODLIKE LGA 1851 E-ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O MSI MEG Z890 GODLIKE LGA 1851 E-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
5x USB-C (USB 3.1/3.2 Gen 2)
8x USB-A (USB 3.1/3.2 Gen 2)
5x USB-C (USB 3.1/3.2 Gen 2)
8x USB-A (USB 3.1/3.2 Gen 2)
Thunderbolt:
1x Thunderbolt 4
Display:
No Dedicated Display Ports (Video Signal via USB-C)
Audio:
2x 1/8" / 3.5 mm
Ethernet / Controller:
1x 5GbE
1x 10GbE
1x 10GbE
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory MSI MEG Z890 GODLIKE LGA 1851 E-ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI MEG Z890 GODLIKE LGA 1851 E-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2280 (PCIe 5.0 x4, PCIe 4.0 x4)
2x M.2 (M Key) 2580 (PCIe 5.0 x4)
2x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2280 (PCIe 5.0 x4, PCIe 4.0 x4)
2x M.2 (M Key) 2580 (PCIe 5.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (M.2)
Internal I/O MSI MEG Z890 GODLIKE LGA 1851 E-ATX Motherboard
Expansion Slots:
2x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 4.0 x4
USB:Universal Serial Bus
Universal Serial Bus2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling:
1x 4-Pin CPU
7x 4-Pin System
7x 4-Pin System
Liquid Cooling:
1x Water Flow-Rate Sensor
2x 4-Pin Pump
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
3x 8-Pin ATX
3x 8-Pin ATX
Security:
Chassis Intrusion, TPM Module
LED Header:
6x RGB
Diagnostics:
Clear CMOS
BIOS MSI MEG Z890 GODLIKE LGA 1851 E-ATX Motherboard
ROM:
2x 256 Mb
Front Panel I/O MSI MEG Z890 GODLIKE LGA 1851 E-ATX Motherboard
Front Panel I/O:
AAFP, USB 3.2 Gen 2x2, Thunderbolt 4
Audio MSI MEG Z890 GODLIKE LGA 1851 E-ATX Motherboard
Audio Codec:
Realtek ALC4082 (7.1-Channel)
DAC:
ESS® ES9219 QUAD DAC
Wireless MSI MEG Z890 GODLIKE LGA 1851 E-ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.4
Physical MSI MEG Z890 GODLIKE LGA 1851 E-ATX Motherboard
Form Factor:
E-ATX
Dimensions:
12 x 10.9" / 304.8 x 276.9 mm
