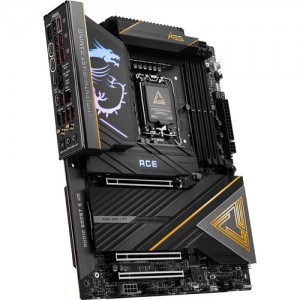

MSI MEG Z890 ACE LGA 1851 ATX specs
Motherboards Specs >> MSI >> MSI MEG Z890 ACE LGA 1851 ATX| Specifications | | | Reviews |
General Specs MSI MEG Z890 ACE LGA 1851 ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 6400, 9200 MT/s
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 5.0 x8
1x PCIe 4.0 x4
1x PCIe 5.0 x8
1x PCIe 4.0 x4
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
ATX
CPU MSI MEG Z890 ACE LGA 1851 ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O MSI MEG Z890 ACE LGA 1851 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus2x USB-C (USB 3.1/3.2 Gen 2)
11x USB-A (USB 3.1/3.2 Gen 2)
11x USB-A (USB 3.1/3.2 Gen 2)
Thunderbolt:
2x Thunderbolt 4
Display:
1x HDMI 2.1
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Marvell AQC113CS 10GbE
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory MSI MEG Z890 ACE LGA 1851 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 6400, 9200 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI MEG Z890 ACE LGA 1851 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (SATA)
Internal I/O MSI MEG Z890 ACE LGA 1851 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 5.0 x8
1x PCIe 4.0 x4
1x PCIe 5.0 x8
1x PCIe 4.0 x4
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
3x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
3x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
5x 4-Pin System
5x 4-Pin System
Liquid Cooling:
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 6-Pin ATX
2x 8-Pin CPU
1x 6-Pin ATX
2x 8-Pin CPU
Security:
Chassis Intrusion, TPM Header
LED Header:
4x RGB
Audio:
1x S/PDIF
Front Panel I/O MSI MEG Z890 ACE LGA 1851 ATX Motherboard
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2
Audio MSI MEG Z890 ACE LGA 1851 ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
ESS9219Q
Wireless MSI MEG Z890 ACE LGA 1851 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.4
Software MSI MEG Z890 ACE LGA 1851 ATX Motherboard
OS Compatibility:
Windows 11
Physical MSI MEG Z890 ACE LGA 1851 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.60" / 304.8 x 243.84 mm
