MSI MEG X870E GODLIKE AM5 E-ATX specs

  Motherboards Specs >> MSI >> MSI MEG X870E GODLIKE AM5 E-ATX
Specifications | Reviews

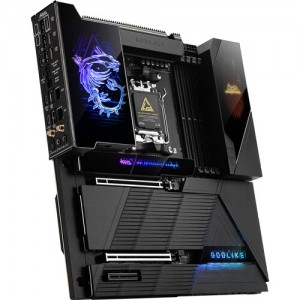

MSI MEG X870E GODLIKE AM5 E-ATX



General Specs MSI MEG X870E GODLIKE AM5 E-ATX Motherboard

Chipset:
AMD X870E
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 MT/s
Storage Slots:
4x M.2 (M Key) 2260, 2280
1x M.2 (M Key) 2280, 22110
2x M.2 (M Key) 2280
Expansion Slots:
2x PCIe 5.0 x16
1x PCIe 4.0 x4
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
E-ATX

CPU MSI MEG X870E GODLIKE AM5 E-ATX Motherboard

Chipset:
AMD X870E
CPU Socket:
AM5

Back Panel I/O MSI MEG X870E GODLIKE AM5 E-ATX Motherboard

USB:?Universal Serial Bus
2x USB-C (USB4)
5x USB-C (USB 3.1/3.2 Gen 2)
8x USB-A (USB 3.1/3.2 Gen 2)
Thunderbolt:
No
Display:
No Dedicated Display Ports (Video Signal via USB-C)
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
Ethernet / Controller:
1x 5GbE
1x 10GbE
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS

Memory MSI MEG X870E GODLIKE AM5 E-ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion MSI MEG X870E GODLIKE AM5 E-ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
4x M.2 (M Key) 2260, 2280
1x M.2 (M Key) 2280, 22110
2x M.2 (M Key) 2280
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (M.2)

Internal I/O MSI MEG X870E GODLIKE AM5 E-ATX Motherboard

Expansion Slots:
2x PCIe 5.0 x16
1x PCIe 4.0 x4
USB:?Universal Serial Bus
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling:
1x 4-Pin CPU
7x 4-Pin Assistant
Liquid Cooling:
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
4x 8-Pin ATX
Security:
Chassis Intrusion, TPM Module
LED Header:
3x RGB

BIOS MSI MEG X870E GODLIKE AM5 E-ATX Motherboard

ROM:
2x 256 Mb

Front Panel I/O MSI MEG X870E GODLIKE AM5 E-ATX Motherboard

Front Panel I/O:
AAFP, USB 3.1/3.2 Gen 2, USB 3.2 Gen 2x2

Audio MSI MEG X870E GODLIKE AM5 E-ATX Motherboard

Audio Codec:
Realtek ALC4082 (7.1-Channel)
DAC:
No

Wireless MSI MEG X870E GODLIKE AM5 E-ATX Motherboard

Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.4

Physical MSI MEG X870E GODLIKE AM5 E-ATX Motherboard

Form Factor:
E-ATX
Dimensions:
10.9 x 12" / 276.9 x 304.8 mm
