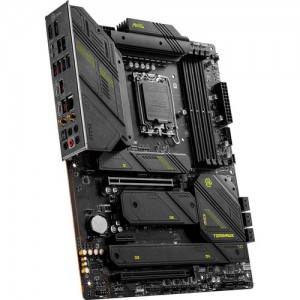

MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX



General Specs MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard

Chipset:
Intel Z790
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MT/s
Storage Slots:
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor:
ATX

CPU MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard

Chipset:
Intel Z790
CPU Socket:
LGA 1700

Back Panel I/O MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.2 Gen 2x2)
1x USB-C (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
Audio:
5x 1/8" / 3.5 mm
1x S/PDIF
Ethernet / Controller:
1x Intel 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS

Memory MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard

SATA:?Serial Advanced Technology Attachment
8x SATA III
Storage Slots:
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)

Internal I/O MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard

Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x1
USB:?Universal Serial Bus
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
6x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
Security:
Chassis Intrusion, TPM Header
LED Header:
4x RGB
Audio:
No
Diagnostics:
2-Digit Debug LED, Clear CMOS
Add-On:
1x Thunderbolt Header
1x Tuning Controller

Front Panel I/O MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard

Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard

Audio Codec:
Realtek ALC4080 (7.1-Channel)
DAC:
No

Wireless MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard

Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth:
5.4

Software MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard

OS Compatibility:
Windows 10 to 11 (64-Bit Only)

Physical MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard

Form Factor:
ATX
Dimensions:
9.6 x 12.0" / 243 x 304 mm
