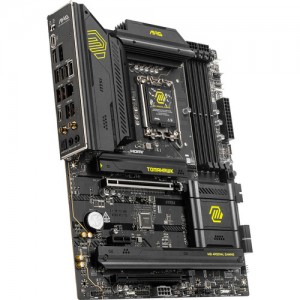

MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX



General Specs MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

Chipset:
Intel B860
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 9200 MT/s
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 4.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX

CPU MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

Chipset:
Intel B860
CPU Socket:
LGA 1851

Back Panel I/O MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
Thunderbolt:
1x Thunderbolt 4
Display:
1x HDMI
1x DisplayPort
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
Ethernet / Controller:
1x 5GbE
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS

Memory MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 9200 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)

Internal I/O MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 4.0 x1
USB:?Universal Serial Bus
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
5x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
3x 8-Pin ATX
Security:
Chassis Intrusion, TPM Module
LED Header:
10x RGB
Diagnostics:
Clear CMOS

BIOS MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

ROM:
256 Mb

Front Panel I/O MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

Front Panel I/O:
AAFP

Audio MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No

Wireless MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4

Software MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

OS Compatibility:
Windows

Physical MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

Form Factor:
ATX
Dimensions:
9.6 x 12" / 243.8 x 304.8 mm
