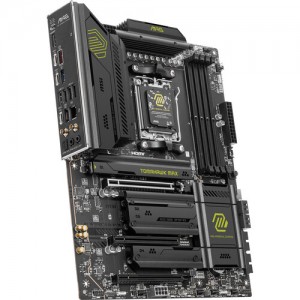

MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX specs
Motherboards Specs >> MSI >> MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX| Specifications | | | Reviews |
General Specs MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8400 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 3.0 x1
1x PCIe 4.0 x4
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Form Factor:
ATX
CPU MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Back Panel I/O MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus3x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
Audio:
2x 1/8" / 3.5 mm
Ethernet / Controller:
1x 5GbE
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8400 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 10 (M.2)
Internal I/O MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 3.0 x1
1x PCIe 4.0 x4
1x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
6x 4-Pin System
6x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
1x 8-Pin CPU
2x 8-Pin ATX
1x 8-Pin CPU
Security:
Chassis Intrusion, TPM Module
LED Header:
9x RGB
Diagnostics:
Clear CMOS
BIOS MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard
ROM:
256 Mb
Front Panel I/O MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard
Front Panel I/O:
AAFP
Audio MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard
Audio Codec:
Realtek ALC4080 (7.1-Channel)
DAC:
No
Wireless MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth:
5.4
Physical MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard
Form Factor:
ATX
Dimensions:
9.6 x 12" / 243.8 x 304.8 mm
