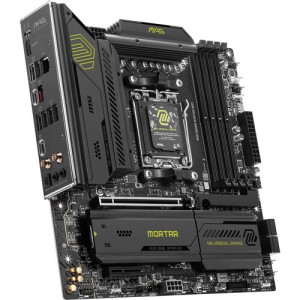

MSI MAG B850M MORTAR WIFI AM5 mATX specs
Motherboards Specs >> MSI >> MSI MAG B850M MORTAR WIFI AM5 mATX| Specifications | | | Reviews |
General Specs MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 MT/s
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2580 (PCIe 4.0 x2)
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2580 (PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 4.0 x4
Wi-Fi:
No
Form Factor:
Micro-ATX
CPU MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Back Panel I/O MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
1x USB-C (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
1x USB-C (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt:
No
Display:
1x HDMI
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Realtek 8126-VB 5GbE
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2580 (PCIe 4.0 x2)
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2580 (PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
Internal I/O MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 4.0 x4
USB:Universal Serial Bus
Universal Serial Bus2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
2x 12V-2X6 (12VHPWR)
1x 8-Pin ATX
2x 12V-2X6 (12VHPWR)
Security:
Chassis Intrusion, TPM Module
LED Header:
9x RGB
Diagnostics:
Clear CMOS
BIOS MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
ROM:
256 Mb
Front Panel I/O MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
Front Panel I/O:
AAFP
Audio MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
Audio Codec:
Realtek ALC4080 (7.1-Channel)
DAC:
No
Wireless MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
Wi-Fi:
No
Bluetooth:
No
Software MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
OS Compatibility:
Windows
Physical MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 243.8 x 243.8 mm
