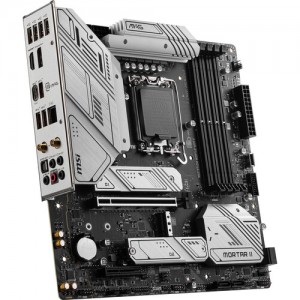

MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX specs
Motherboards Specs >> MSI >> MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX| Specifications | | | Reviews |
General Specs MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX Motherboard
Chipset:
Intel B760
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 3.0 x4
1x PCIe 3.0 x4
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
Micro-ATX
CPU MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX Motherboard
Chipset:
Intel B760
CPU Socket:
LGA 1700
Back Panel I/O MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
3x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
3x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1 Output
1x DisplayPort 1.4 Output
1x DisplayPort 1.4 Output
Audio:
5x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Memory MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
Internal I/O MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 3.0 x4
1x PCIe 3.0 x4
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 3-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
2x 8-Pin ATX
Security:
Chassis Intrusion, TPM Module
LED Header:
7x RGB
Add-On:
1x USB4 Expansion Card Header
BIOS MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX Motherboard
ROM:
256 Mb
Front Panel I/O MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX Motherboard
Front Panel I/O:
AAFP
Audio MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX Motherboard
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.3
Software MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX Motherboard
OS Compatibility:
Windows 10 to 11
Physical MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 243.8 x 243.8 mm
