MSI MAG B550 TOMAHAWK AM4 ATX specs

  Motherboards Specs >> MSI >> MSI MAG B550 TOMAHAWK AM4 ATX
Specifications | Reviews

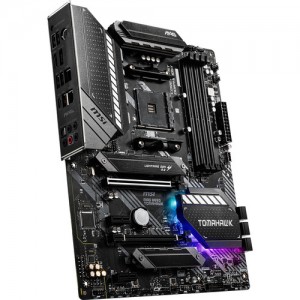

MSI MAG B550 TOMAHAWK AM4 ATX



General Specs MSI MAG B550 TOMAHAWK AM4 ATX Motherboard

Chipset:
AMD B550
CPU Socket:
AM4
Memory Slots:
4x 288-Pin
Memory Support:
DDR4 2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4533, 4600, 4800, 4866, 5000, 5100 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x16
2x PCIe 3.0 x1
Wi-Fi:
No
Form Factor:
ATX

CPU MSI MAG B550 TOMAHAWK AM4 ATX Motherboard

Chipset:
AMD B550
CPU Socket:
AM4

Back Panel I/O MSI MAG B550 TOMAHAWK AM4 ATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
Audio:
5x 1/8" / 3.5 mm
1x S/PDIF
Ethernet / Controller:
1x 2.5Gigabit
1x Gigabit
PS/2:
1x Combo
Buttons:
BIOS Flashback

Memory MSI MAG B550 TOMAHAWK AM4 ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR4 2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4533, 4600, 4800, 4866, 5000, 5100 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered

Storage Expansion MSI MAG B550 TOMAHAWK AM4 ATX Motherboard

SATA:?Serial Advanced Technology Attachment
6x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4)
U.2:
No
RAID Support:
RAID 0, 1, 10 (SATA)
RAID 0, 1 (M.2)

Internal I/O MSI MAG B550 TOMAHAWK AM4 ATX Motherboard

Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x16
2x PCIe 3.0 x1
USB:?Universal Serial Bus
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
6x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
Security:
Chassis Intrusion, TPM Module
LED Header:
4x RGB
Audio:
1x Speaker
Diagnostics:
Clear CMOS

BIOS MSI MAG B550 TOMAHAWK AM4 ATX Motherboard

ROM:
256 Mb

Front Panel I/O MSI MAG B550 TOMAHAWK AM4 ATX Motherboard

Front Panel I/O:
USB 3.0 / 3.1/3.2 Gen 1

Audio MSI MAG B550 TOMAHAWK AM4 ATX Motherboard

Audio Codec:
Realtek ALC1200/ALC1220P (7.1-Channel)
DAC:
No

Wireless MSI MAG B550 TOMAHAWK AM4 ATX Motherboard

Wi-Fi:
No
Bluetooth:
No

Software MSI MAG B550 TOMAHAWK AM4 ATX Motherboard

OS Compatibility:
Windows 10

Physical MSI MAG B550 TOMAHAWK AM4 ATX Motherboard

Form Factor:
ATX
Dimensions:
9.6 x 12" / 24.4 x 30.5 cm
