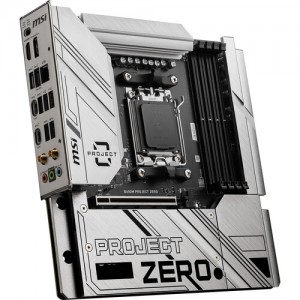

MSI B650M Project Zero AM5 Micro-ATX (White) specs
Motherboards Specs >> MSI >> MSI B650M Project Zero AM5 Micro-ATX (White)| Specifications | | | Reviews |
General Specs MSI B650M Project Zero AM5 Micro-ATX Motherboard (White)
Chipset:
AMD B650
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MT/s
Storage Slots:
2x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x1
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
Micro-ATX
CPU MSI B650M Project Zero AM5 Micro-ATX Motherboard (White)
Chipset:
AMD B650
CPU Socket:
AM5
Back Panel I/O MSI B650M Project Zero AM5 Micro-ATX Motherboard (White)
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
1x USB-C (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
1x USB-C (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
1x DisplayPort 1.4
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek RTL8125BG 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory MSI B650M Project Zero AM5 Micro-ATX Motherboard (White)
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI B650M Project Zero AM5 Micro-ATX Motherboard (White)
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
2x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
RAID Support:
RAID 0, 1, 10 (SATA)
RAID 0, 1 (M.2)
RAID 0, 1 (M.2)
Internal I/O MSI B650M Project Zero AM5 Micro-ATX Motherboard (White)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x1
1x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
Security:
Chassis Intrusion, TPM Header
LED Header:
3x RGB
Audio:
1x Speaker
Diagnostics:
2-Digit Debug LED, Clear CMOS, Safe Boot
BIOS MSI B650M Project Zero AM5 Micro-ATX Motherboard (White)
ROM:
256 Mb
Front Panel I/O MSI B650M Project Zero AM5 Micro-ATX Motherboard (White)
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio MSI B650M Project Zero AM5 Micro-ATX Motherboard (White)
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless MSI B650M Project Zero AM5 Micro-ATX Motherboard (White)
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.3
Module Support:
1 E Key M.2
Software MSI B650M Project Zero AM5 Micro-ATX Motherboard (White)
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical MSI B650M Project Zero AM5 Micro-ATX Motherboard (White)
Form Factor:
Micro-ATX
Dimensions:
9.60 x 9.60" / 243.84 x 243.84 mm
