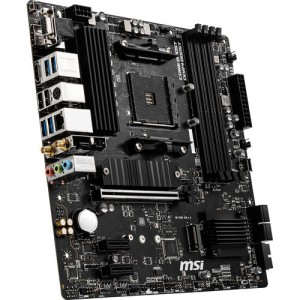

MSI B550M PRO-VDH WIFI Micro-ATX specs
Motherboards Specs >> MSI >> MSI B550M PRO-VDH WIFI Micro-ATX| Specifications | | | Reviews |
General MSI B550M PRO-VDH WIFI Micro-ATX Motherboard
Chipset:
AMD B550
CPU Socket:
AM4
Back Panel I/O MSI B550M PRO-VDH WIFI Micro-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort
1x VGA
1x DisplayPort
1x VGA
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 8111HN Gigabit
PS/2:
1x PS/2
Buttons:
BIOS Flashback
Memory MSI B550M PRO-VDH WIFI Micro-ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion MSI B550M PRO-VDH WIFI Micro-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, PCIe 3.0 x4)
U.2:
No
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 10 (SATA)
RAID 0, 1 (M.2)
RAID 0, 1 (M.2)
Internal I/O MSI B550M PRO-VDH WIFI Micro-ATX Motherboard
Expansion Slots:
1x PCIe 4.0 x16
2x PCIe 3.0 x1
2x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Multi-GPU Support:
No
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 8-Pin ATX
Security:
Chassis Intrusion, TPM Module
LED Header:
4x RGB
Audio:
1x Speaker
Diagnostics:
Clear CMOS
Legacy:
1x Serial
Front Panel I/O MSI B550M PRO-VDH WIFI Micro-ATX Motherboard
Front Panel I/O:
USB 3.0 / 3.1/3.2 Gen 1
Audio MSI B550M PRO-VDH WIFI Micro-ATX Motherboard
Audio Codec:
Realtek ALC892/ALC897 (7.1-Channel)
Wireless MSI B550M PRO-VDH WIFI Micro-ATX Motherboard
Wi-Fi:
Wi-Fi 5 (802.11ac) with MU-MIMO Support
Bluetooth:
4.2
Wireless:
Wi-Fi 5 (802.11ac) / Bluetooth 4.2
Physical MSI B550M PRO-VDH WIFI Micro-ATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 24.4 x 24.4 cm
