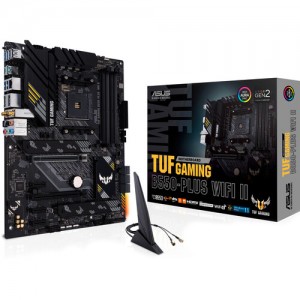

ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Gaming specs
Motherboards Specs >> ASUS >> ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Gaming| Specifications | | | Reviews |
General Specs ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Gaming Motherboard
Chipset:
AMD B550
CPU Socket:
AM4
Memory Slots:
4x 288-Pin
Memory Support:
DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4600, 4800, 4866 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA (Unspecified))
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x16 (x4 mode)
3x PCIe 3.0 x1
1x PCIe 3.0 x16 (x4 mode)
3x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 6 (802.11ax) with MU-MIMO Support
Form Factor:
ATX
CPU ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Gaming Motherboard
Chipset:
AMD B550
CPU Socket:
AM4
Back Panel I/O ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Gaming Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.2
1x DisplayPort 1.2
Audio:
5x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Gaming Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4600, 4800, 4866 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
ECC Unbuffered
Storage Expansion ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Gaming Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment6x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA (Unspecified))
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 10
Internal I/O ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Gaming Motherboard
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x16 (x4 mode)
3x PCIe 3.0 x1
1x PCIe 3.0 x16 (x4 mode)
3x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 8-Pin ATX
Security:
TPM Header
LED Header:
2x RGB
Audio:
No
Diagnostics:
Clear CMOS, Flash BIOS
Add-On:
1x Thunderbolt Header
BIOS ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Gaming Motherboard
ROM:
256 Mb
Front Panel I/O ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Gaming Motherboard
Front Panel I/O:
AAFP
Audio ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Gaming Motherboard
Audio Codec:
Realtek (7.1-Channel)
Wireless ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Gaming Motherboard
Wi-Fi:
Wi-Fi 6 (802.11ax) with MU-MIMO Support
Bluetooth:
5.2
Software ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Gaming Motherboard
OS Compatibility:
Windows 10
Physical ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Gaming Motherboard
Form Factor:
ATX
