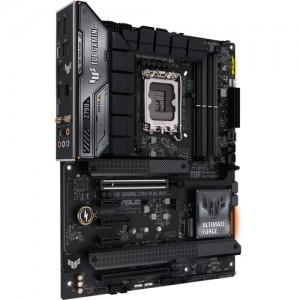

General Specs ASUS TUF GAMING Z790-PLUS WIFI LGA 1700 ATX Gaming Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x4
2x PCIe 3.0 x1
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x4
2x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Form Factor:
ATX
CPU ASUS TUF GAMING Z790-PLUS WIFI LGA 1700 ATX Gaming Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Back Panel I/O ASUS TUF GAMING Z790-PLUS WIFI LGA 1700 ATX Gaming Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
1x DisplayPort 1.4
Audio:
5x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Intel 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Memory ASUS TUF GAMING Z790-PLUS WIFI LGA 1700 ATX Gaming Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion ASUS TUF GAMING Z790-PLUS WIFI LGA 1700 ATX Gaming Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (M.2)
Internal I/O ASUS TUF GAMING Z790-PLUS WIFI LGA 1700 ATX Gaming Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x4
2x PCIe 3.0 x1
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x4
2x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
2x 8-Pin ATX
Security:
Chassis Intrusion
LED Header:
4x RGB
Diagnostics:
Clear CMOS
Add-On:
1x Thunderbolt Header
Legacy:
1x Serial
BIOS ASUS TUF GAMING Z790-PLUS WIFI LGA 1700 ATX Gaming Motherboard
ROM:
192 Mb
Front Panel I/O ASUS TUF GAMING Z790-PLUS WIFI LGA 1700 ATX Gaming Motherboard
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1, Thunderbolt 4
Audio ASUS TUF GAMING Z790-PLUS WIFI LGA 1700 ATX Gaming Motherboard
Audio Codec:
Realtek S1220A (7.1-Channel)
DAC:
No
Wireless ASUS TUF GAMING Z790-PLUS WIFI LGA 1700 ATX Gaming Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Bluetooth:
5.3
Software ASUS TUF GAMING Z790-PLUS WIFI LGA 1700 ATX Gaming Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical ASUS TUF GAMING Z790-PLUS WIFI LGA 1700 ATX Gaming Motherboard
Form Factor:
ATX
Dimensions:
12 x 9.6" / 30.5 x 24.4 cm
