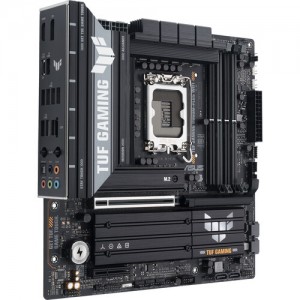

ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 M-ATX specs
Motherboards Specs >> ASUS >> ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 M-ATX| Specifications | | | Reviews |
General Specs ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 M-ATX Motherboard
Chipset:
Intel B860
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8800 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 4.0 x4
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
Micro-ATX
CPU ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 M-ATX Motherboard
Chipset:
Intel B860
CPU Socket:
LGA 1851
Back Panel I/O ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 M-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
1x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
1x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
1x DisplayPort 1.4
Audio:
5x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Memory ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 M-ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8800 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered
Storage Expansion ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 M-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10
Internal I/O ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 M-ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 4.0 x4
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling:
2x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
Security:
Chassis Intrusion
LED Header:
3x RGB
Audio:
1x Speaker
Diagnostics:
Clear CMOS
Add-On:
1x Thunderbolt Header
Legacy:
1x Serial
BIOS ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 M-ATX Motherboard
ROM:
2x 128 Mb
Front Panel I/O ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 M-ATX Motherboard
Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 M-ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 M-ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Module Support:
1 E Key M.2
Software ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 M-ATX Motherboard
OS Compatibility:
Windows 11
Physical ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 M-ATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 243.8 x 243.8 mm
