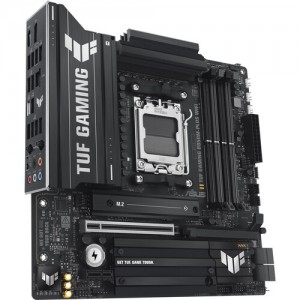

General Specs ASUS TUF GAMING B850M-PLUS WIFI AM5 M-ATX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8000 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x1
1x PCIe 4.0 x1
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
Micro-ATX
CPU ASUS TUF GAMING B850M-PLUS WIFI AM5 M-ATX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Back Panel I/O ASUS TUF GAMING B850M-PLUS WIFI AM5 M-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
3x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
3x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
1x DisplayPort 1.4
Audio:
5x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory ASUS TUF GAMING B850M-PLUS WIFI AM5 M-ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8000 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered
Storage Expansion ASUS TUF GAMING B850M-PLUS WIFI AM5 M-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10
Internal I/O ASUS TUF GAMING B850M-PLUS WIFI AM5 M-ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x1
1x PCIe 4.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 3 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 3 USB-A Port)
Air Cooling:
2x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
Security:
Chassis Intrusion
LED Header:
3x RGB
Audio:
1x Speaker
Diagnostics:
Clear CMOS
Legacy:
1x Serial
BIOS ASUS TUF GAMING B850M-PLUS WIFI AM5 M-ATX Motherboard
ROM:
256 Mb
Front Panel I/O ASUS TUF GAMING B850M-PLUS WIFI AM5 M-ATX Motherboard
Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio ASUS TUF GAMING B850M-PLUS WIFI AM5 M-ATX Motherboard
Audio Codec:
Realtek ALC1220P (7.1-Channel)
DAC:
No
Wireless ASUS TUF GAMING B850M-PLUS WIFI AM5 M-ATX Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Module Support:
1 E Key M.2
Software ASUS TUF GAMING B850M-PLUS WIFI AM5 M-ATX Motherboard
OS Compatibility:
Windows 11
Physical ASUS TUF GAMING B850M-PLUS WIFI AM5 M-ATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 243.8 x 243.8 mm
