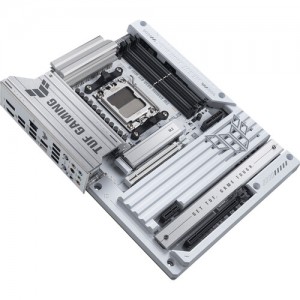

ASUS TUF GAMING B850-BTF WIFI W AM5 ATX specs
Motherboards Specs >> ASUS >> ASUS TUF GAMING B850-BTF WIFI W AM5 ATX| Specifications | | | Reviews |
General Specs ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8000 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) (2 x 2)
Form Factor:
ATX
CPU ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Back Panel I/O ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
3x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
3x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
1x DisplayPort 1.4
Audio:
5x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8000 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered
Storage Expansion ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
RAID Support:
RAID 0, 1, 5, 10
Internal I/O ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
1x 12V-2X6 (12VHPWR)
2x 8-Pin ATX
1x 12V-2X6 (12VHPWR)
Security:
Chassis Intrusion
LED Header:
3x RGB
Diagnostics:
Clear CMOS
Add-On:
1x Thunderbolt Header
Legacy:
1x Serial
BIOS ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard
ROM:
256 Mb
Front Panel I/O ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard
Audio Codec:
Realtek ALC1220P (7.1-Channel)
DAC:
No
Wireless ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) (2 x 2)
Bluetooth:
5.4
Module Support:
1 E Key M.2
Software ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard
OS Compatibility:
Windows 11
Physical ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard
Form Factor:
ATX
Dimensions:
12 x 9.6" / 30.5 x 24.4 cm
