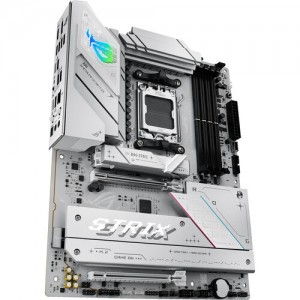

ASUS Republic of Gamers STRIX B850-A GAMING WIFI AM5 ATX (White) specs
Motherboards Specs >> ASUS >> ASUS Republic of Gamers STRIX B850-A GAMING WIFI AM5 ATX (White)| Specifications | | | Reviews |
General Specs ASUS Republic of Gamers STRIX B850-A GAMING WIFI AM5 ATX Motherboard (White)
Chipset:
AMD B850
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8000 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4)
2x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4)
2x M.2 (M Key) 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU ASUS Republic of Gamers STRIX B850-A GAMING WIFI AM5 ATX Motherboard (White)
Chipset:
AMD B850
CPU Socket:
AM5
Back Panel I/O ASUS Republic of Gamers STRIX B850-A GAMING WIFI AM5 ATX Motherboard (White)
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
1x DisplayPort 1.4
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Intel 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory ASUS Republic of Gamers STRIX B850-A GAMING WIFI AM5 ATX Motherboard (White)
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8000 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered
Storage Expansion ASUS Republic of Gamers STRIX B850-A GAMING WIFI AM5 ATX Motherboard (White)
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment2x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4)
2x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4)
2x M.2 (M Key) 2280 (PCIe 4.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10
Internal I/O ASUS Republic of Gamers STRIX B850-A GAMING WIFI AM5 ATX Motherboard (White)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
5x 4-Pin System
1x Thermal Sensor
5x 4-Pin System
1x Thermal Sensor
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
LED Header:
3x RGB
Audio:
1x Speaker
Diagnostics:
Voltage Regulation
Add-On:
1x Thunderbolt Header
BIOS ASUS Republic of Gamers STRIX B850-A GAMING WIFI AM5 ATX Motherboard (White)
ROM:
256 Mb
Front Panel I/O ASUS Republic of Gamers STRIX B850-A GAMING WIFI AM5 ATX Motherboard (White)
Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio ASUS Republic of Gamers STRIX B850-A GAMING WIFI AM5 ATX Motherboard (White)
Audio Codec:
SupremeFX ALC4080 (7.1-Channel)
DAC:
No
Wireless ASUS Republic of Gamers STRIX B850-A GAMING WIFI AM5 ATX Motherboard (White)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Module Support:
1 E Key M.2
Software ASUS Republic of Gamers STRIX B850-A GAMING WIFI AM5 ATX Motherboard (White)
OS Compatibility:
Windows 11
Physical ASUS Republic of Gamers STRIX B850-A GAMING WIFI AM5 ATX Motherboard (White)
Form Factor:
ATX
Dimensions:
12 x 9.6" / 304.8 x 243.8 mm
