ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX specs

  Motherboards Specs >> ASUS >> ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX
Specifications | Reviews

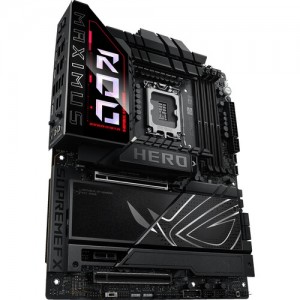

ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX



General Specs ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX Motherboard

Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 9200 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
3x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX

CPU ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX Motherboard

Chipset:
Intel Z890
CPU Socket:
LGA 1851

Back Panel I/O ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt:
2x Thunderbolt 4
Display:
1x HDMI 2.1
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
Ethernet / Controller:
1x Realtek 5GbE
1x Intel 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS

Memory ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 9200 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
3x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10

Internal I/O ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX Motherboard

Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
USB:?Universal Serial Bus
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
4x 4-Pin System
1x Thermal Sensor
Liquid Cooling:
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
1x 8-Pin ATX
LED Header:
3x RGB
Audio:
1x Speaker
Diagnostics:
2-Digit Debug LED, Clear CMOS, Flash BIOS, ReTry, Start
Add-On:
1x Thunderbolt Header

BIOS ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX Motherboard

ROM:
256 Mb

Front Panel I/O ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX Motherboard

Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2, USB 3.2 Gen 2x2

Audio ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX Motherboard

Audio Codec:
SupremeFX ALC4082 (7.1-Channel)
DAC:
ESS ES9219

Wireless ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX Motherboard

Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Module Support:
1 E Key M.2

Software ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX Motherboard

OS Compatibility:
Windows 11

Physical ASUS ROG MAXIMUS Z890 HERO LGA 1851 ATX Motherboard

Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
