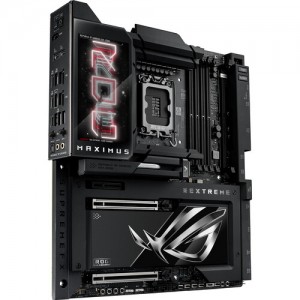

ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX specs
Motherboards Specs >> ASUS >> ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX| Specifications | | | Reviews |
General Specs ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 9200 MT/s
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260 (PCIe 4.0 x4)
Expansion Slots:
2x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 4.0 x4
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
E-ATX
CPU ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
2x USB-C (USB 3.1/3.2 Gen 2)
5x USB-A (USB 3.1/3.2 Gen 2)
2x USB-C (USB 3.1/3.2 Gen 2)
5x USB-A (USB 3.1/3.2 Gen 2)
Thunderbolt:
2x Thunderbolt 5
Display:
1x HDMI 2.1
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Marvell AQtion 10GbE
1x Intel 2.5Gigabit
1x Intel 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 9200 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260 (PCIe 4.0 x4)
DIMM.2:
1 Slot Supporting 2 M Key 2230, 2242, 2260, 2280, 22110 PCIe 4.0 x4
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10
Internal I/O ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX Motherboard
Expansion Slots:
2x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 4.0 x4
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
2x 4-Pin System
2x 4-Pin System
Liquid Cooling:
2x Radiator Fan
2x 4-Pin Pump
1x 9-Pin Monoblock Sensor
2x 4-Pin Pump
1x 9-Pin Monoblock Sensor
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
1x 8-Pin ATX
2x 8-Pin CPU
1x 8-Pin ATX
LED Header:
3x RGB
Audio:
1x Speaker
Diagnostics:
BIOS Selection, Clear CMOS, Flash BIOS, LN Mode, Measurement Points, ReTry, Safe Boot, Slow Mode
BIOS ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX Motherboard
ROM:
2x 256 Mb
Front Panel I/O ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX Motherboard
Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2, USB 3.2 Gen 2x2
Audio ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX Motherboard
Audio Codec:
SupremeFX ALC4082 (7.1-Channel)
DAC:
ESS ES9219
Wireless ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Module Support:
1 E Key M.2
Software ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX Motherboard
OS Compatibility:
Windows 11
Physical ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX Motherboard
Form Factor:
E-ATX
Dimensions:
12.0 x 10.9" / 30.5 x 27.7 cm
