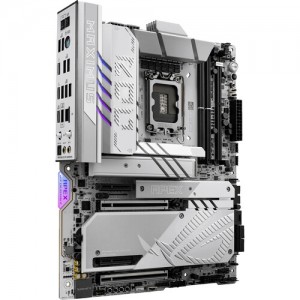

ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX specs
Motherboards Specs >> ASUS >> ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX| Specifications | | | Reviews |
General Specs ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 9600 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Expansion Slots:
2x PCIe 5.0 x16
2x PCIe 4.0 x4
2x PCIe 4.0 x4
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
4x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt:
2x Thunderbolt 4
Display:
No Dedicated Display Ports (Video Signal via USB-C)
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Realtek 5GbE
PS/2:
1x Combo
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 9600 MT/s
Maximum Capacity:
96 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
DIMM.2:
1 Slot Supporting 2 M Key 2230, 2242, 2260, 2280, 22110 PCIe 4.0 x4
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10
Internal I/O ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard
Expansion Slots:
2x PCIe 5.0 x16
2x PCIe 4.0 x4
2x PCIe 4.0 x4
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
4x 4-Pin System
1x Thermal Sensor
4x 4-Pin System
1x Thermal Sensor
Liquid Cooling:
2x 4-Pin Pump
1x Water Cooling CPU Fan
1x Water Cooling CPU Fan
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
1x 8-Pin ATX
2x 8-Pin CPU
1x 8-Pin ATX
LED Header:
3x RGB
Audio:
1x Speaker
Diagnostics:
2-Digit Debug LED, BIOS Selection, Clear CMOS, Flash BIOS, LN Mode, Measurement Points, Pause, ReTry, Safe Boot, Slow Mode, Start
Add-On:
1x Thunderbolt Header
BIOS ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard
ROM:
2x 256 Mb
Front Panel I/O ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard
Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2, USB 3.2 Gen 2x2
Audio ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard
Audio Codec:
SupremeFX ALC4080 (7.1-Channel)
DAC:
Savitech SV3H712
Wireless ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Module Support:
1 E Key M.2
Software ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard
OS Compatibility:
Windows 11
Physical ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
