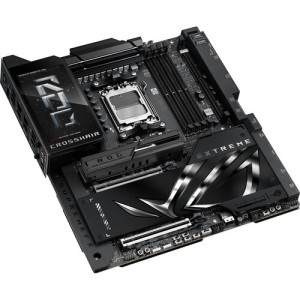

ASUS ROG CROSSHAIR X870E EXTREME WIFI AM5 ATX specs
Motherboards Specs >> ASUS >> ASUS ROG CROSSHAIR X870E EXTREME WIFI AM5 ATX| Specifications | | | Reviews |
General Specs ASUS ROG CROSSHAIR X870E EXTREME WIFI AM5 ATX Motherboard
Chipset:
AMD X870E
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 MT/s
Storage Slots:
5x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
Expansion Slots:
2x PCIe 5.0 x16
Wi-Fi:
Wi-Fi 7 (802.11be)
Form Factor:
E-ATX
CPU ASUS ROG CROSSHAIR X870E EXTREME WIFI AM5 ATX Motherboard
Chipset:
AMD X870E
CPU Socket:
AM5
Back Panel I/O ASUS ROG CROSSHAIR X870E EXTREME WIFI AM5 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus2x USB-C (USB4)
2x USB-C (USB 3.1/3.2 Gen 2)
8x USB-A (USB 3.1/3.2 Gen 2)
2x USB-C (USB 3.1/3.2 Gen 2)
8x USB-A (USB 3.1/3.2 Gen 2)
Thunderbolt:
No
Display:
1x HDMI
Audio:
2x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 5GbE
Buttons:
BIOS Flashback, Clear CMOS
Memory ASUS ROG CROSSHAIR X870E EXTREME WIFI AM5 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered
Storage Expansion ASUS ROG CROSSHAIR X870E EXTREME WIFI AM5 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
1x SlimSAS (SFF-8654)
1x SlimSAS (SFF-8654)
Storage Slots:
5x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
RAID Support:
RAID 0, 1, 5, 10
Internal I/O ASUS ROG CROSSHAIR X870E EXTREME WIFI AM5 ATX Motherboard
Expansion Slots:
2x PCIe 5.0 x16
USB:Universal Serial Bus
Universal Serial Bus2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Power Connectors:
1x 24-Pin Mainboard
Audio:
1x S/PDIF
Diagnostics:
Clear CMOS, Flash BIOS, HOTKEY, Power, ReTry, Safe Boot, Slow Mode
BIOS ASUS ROG CROSSHAIR X870E EXTREME WIFI AM5 ATX Motherboard
ROM:
2x 256 Mb
Front Panel I/O ASUS ROG CROSSHAIR X870E EXTREME WIFI AM5 ATX Motherboard
Front Panel I/O:
USB 2.0, USB 3.0 / 3.1/3.2 Gen 1
Audio ASUS ROG CROSSHAIR X870E EXTREME WIFI AM5 ATX Motherboard
Audio Codec:
ASUS ROG SupremeFX (7.1-Channel)
DAC:
No
Wireless ASUS ROG CROSSHAIR X870E EXTREME WIFI AM5 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be)
Bluetooth:
5.4
Software ASUS ROG CROSSHAIR X870E EXTREME WIFI AM5 ATX Motherboard
OS Compatibility:
Windows 11
Physical ASUS ROG CROSSHAIR X870E EXTREME WIFI AM5 ATX Motherboard
Form Factor:
E-ATX
Dimensions:
12.0 x 10.9" / 30.5 x 27.7 cm
