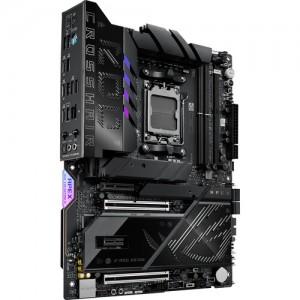

ASUS ROG CROSSHAIR X870E APEX AM5 ATX specs
Motherboards Specs >> ASUS >> ASUS ROG CROSSHAIR X870E APEX AM5 ATX| Specifications | | | Reviews |
General Specs ASUS ROG CROSSHAIR X870E APEX AM5 ATX Motherboard
Chipset:
AMD X870E
CPU Socket:
AM5
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 8000, 8200, 9600 MT/s
Storage Slots:
3x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
Expansion Slots:
2x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 4.0 x1
1x PCIe 4.0 x4
1x PCIe 4.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU ASUS ROG CROSSHAIR X870E APEX AM5 ATX Motherboard
Chipset:
AMD X870E
CPU Socket:
AM5
Back Panel I/O ASUS ROG CROSSHAIR X870E APEX AM5 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus2x USB-C (USB4)
1x USB-C (USB 3.1/3.2 Gen 2)
5x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
1x USB-C (USB 3.1/3.2 Gen 2)
5x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt:
No
Display:
No Dedicated Display Ports (Video Signal via USB-C)
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Realtek 5GbE
PS/2:
1x Combo
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory ASUS ROG CROSSHAIR X870E APEX AM5 ATX Motherboard
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 8000, 8200, 9600 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion ASUS ROG CROSSHAIR X870E APEX AM5 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
3x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
DIMM.2:
2 Slots Supporting M Key 2230, 2242, 2260, 2280, 22110 PCIe 4.0 x4
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10
Internal I/O ASUS ROG CROSSHAIR X870E APEX AM5 ATX Motherboard
Expansion Slots:
2x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 4.0 x1
1x PCIe 4.0 x4
1x PCIe 4.0 x1
USB:Universal Serial Bus
Universal Serial Bus2x USB 3.2 Gen 2x2 Header (Supports 2 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
5x 4-Pin System
1x Thermal Sensor
5x 4-Pin System
1x Thermal Sensor
Liquid Cooling:
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
1x 8-Pin ATX
2x 8-Pin CPU
1x 8-Pin ATX
LED Header:
4x RGB
Audio:
No
Diagnostics:
BIOS Selection, LN Mode, Measurement Points, Pause, ReTry, Safe Boot, Slow Mode, Start, Voltage Regulation
BIOS ASUS ROG CROSSHAIR X870E APEX AM5 ATX Motherboard
ROM:
2x 256 Mb
Front Panel I/O ASUS ROG CROSSHAIR X870E APEX AM5 ATX Motherboard
Front Panel I/O:
AAFP
Audio ASUS ROG CROSSHAIR X870E APEX AM5 ATX Motherboard
Audio Codec:
SupremeFX ALC4080 (7.1-Channel)
DAC:
SV3H712
Wireless ASUS ROG CROSSHAIR X870E APEX AM5 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Software ASUS ROG CROSSHAIR X870E APEX AM5 ATX Motherboard
OS Compatibility:
Windows 11 or Later
Physical ASUS ROG CROSSHAIR X870E APEX AM5 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
