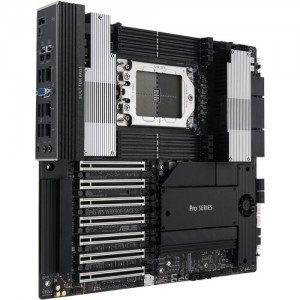

ASUS Pro WS WRX90E-SAGE SE EEB specs
Motherboards Specs >> ASUS >> ASUS Pro WS WRX90E-SAGE SE EEB| Specifications | | | Reviews |
General Specs ASUS Pro WS WRX90E-SAGE SE EEB Motherboard
Chipset:
AMD WRX90
CPU Socket:
sTR5
Memory Slots:
8x 288-Pin
Memory Support:
DDR5 MT/s
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
Expansion Slots:
6x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 5.0 x16 (x8 mode)
Wi-Fi:
No
Form Factor:
EEB
CPU ASUS Pro WS WRX90E-SAGE SE EEB Motherboard
Chipset:
AMD WRX90
CPU Socket:
sTR5
Back Panel I/O ASUS Pro WS WRX90E-SAGE SE EEB Motherboard
USB:
Universal Serial Bus
Universal Serial Bus2x USB-C (USB4)
6x USB-A (USB 3.1/3.2 Gen 2)
1x USB-A (USB 2.0)
6x USB-A (USB 3.1/3.2 Gen 2)
1x USB-A (USB 2.0)
Thunderbolt:
No
Display:
2x Mini DisplayPort Output
1x VGA
1x VGA
Audio:
2x 1/8" / 3.5 mm
Ethernet / Controller:
2x Intel 10GbE
1x Realtek Gigabit
1x Realtek Gigabit
Buttons:
BIOS Flashback, Clear CMOS
Memory ASUS Pro WS WRX90E-SAGE SE EEB Motherboard
Memory Slots:
8x 288-Pin
Memory Support:
DDR5 MT/s
Maximum Capacity:
2 TB
Channel Architecture:
Quad Channel
ECC Support:
ECC Buffered
Storage Expansion ASUS Pro WS WRX90E-SAGE SE EEB Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (M.2)
Internal I/O ASUS Pro WS WRX90E-SAGE SE EEB Motherboard
Expansion Slots:
6x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 5.0 x16 (x8 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
1x 4-Pin CPU
5x 4-Pin System
2x VRM Heatsink
1x 4-Pin M.2
1x 4-Pin CPU
5x 4-Pin System
2x VRM Heatsink
1x 4-Pin M.2
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
2x 8-Pin CPU
2x 8-Pin CPU
2x 8-Pin ATX
2x 8-Pin CPU
2x 8-Pin CPU
Security:
TPM Header
Audio:
1x Speaker
Diagnostics:
LN Mode, ReTry, Safe Boot, Slow Mode, Start
BIOS ASUS Pro WS WRX90E-SAGE SE EEB Motherboard
ROM:
256 Mb
Audio ASUS Pro WS WRX90E-SAGE SE EEB Motherboard
Audio Codec:
Realtek ALC1220P (5.1-Channel)
DAC:
No
Wireless ASUS Pro WS WRX90E-SAGE SE EEB Motherboard
Wi-Fi:
No
Bluetooth:
No
Software ASUS Pro WS WRX90E-SAGE SE EEB Motherboard
OS Compatibility:
Windows 11
Windows 10 (64-Bit Only)
Windows 10 (64-Bit Only)
Physical ASUS Pro WS WRX90E-SAGE SE EEB Motherboard
Form Factor:
EEB
Dimensions:
12 x 13" / 30.5 x 33.0 cm
