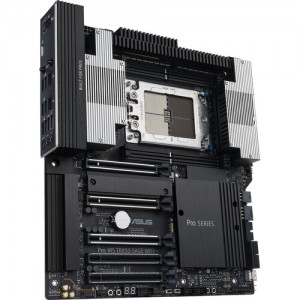

ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB specs
Motherboards Specs >> ASUS >> ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB| Specifications | | | Reviews |
General Specs ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB Motherboard
Chipset:
AMD TRX50
CPU Socket:
sTR5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 MT/s
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
Expansion Slots:
2x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 4.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 4.0 x16
1x PCIe 4.0 x16 (x4 mode)
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor:
CEB
CPU ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB Motherboard
Chipset:
AMD TRX50
CPU Socket:
sTR5
Back Panel I/O ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
6x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 2.0)
6x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
No
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Marvell AQtion 10GbE
1x Intel 2.5Gigabit
1x Intel 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 MT/s
Maximum Capacity:
1 TB
Channel Architecture:
Quad Channel
ECC Support:
ECC Buffered
Storage Expansion ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (M.2)
Internal I/O ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB Motherboard
Expansion Slots:
2x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 4.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 4.0 x16
1x PCIe 4.0 x16 (x4 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
4x 4-Pin System
2x VRM Heatsink
1x Thermal Sensor
4x 4-Pin System
2x VRM Heatsink
1x Thermal Sensor
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
2x 24-Pin Mainboard
3x 8-Pin ATX
2x 8-Pin CPU
1x 6-Pin ATX
3x 8-Pin ATX
2x 8-Pin CPU
1x 6-Pin ATX
Security:
Chassis Intrusion, TPM Header
Diagnostics:
ReTry, Safe Boot, Slow Mode, Start
Add-On:
1x USB4 Expansion Card Header
Legacy:
1x Parallel
1x Serial
1x Serial
BIOS ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB Motherboard
ROM:
256 Mb
Front Panel I/O ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB Motherboard
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2
Audio ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB Motherboard
Audio Codec:
Realtek ALC1220P (7.1-Channel)
DAC:
No
Wireless ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth:
5.4
Software ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB Motherboard
Form Factor:
CEB
Dimensions:
12 x 11" / 30.5 x 27.9 cm
