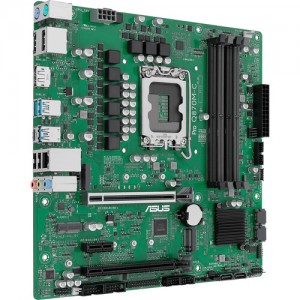

ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX specs
Motherboards Specs >> ASUS >> ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX| Specifications | | | Reviews |
General Specs ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX Motherboard
Chipset:
Intel Q870
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 6400 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
Wi-Fi:
No
Form Factor:
Micro-ATX
CPU ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX Motherboard
Chipset:
Intel Q870
CPU Socket:
LGA 1851
Back Panel I/O ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
2x DisplayPort 1.4
2x DisplayPort 1.4
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Intel I219LM Gigabit
PS/2:
2x PS/2
Memory ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 6400 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, Clocked Unbuffered
Storage Expansion ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10
Internal I/O ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin System
1x 4-Pin CPU
1x 4-Pin CPU
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
1x 8-Pin CPU
Security:
Chassis Intrusion, TPM Module
Audio:
1x Speaker
Diagnostics:
2-Digit Debug LED
Legacy:
2x Serial
1x Parallel
1x Parallel
BIOS ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX Motherboard
ROM:
256 Mb
Front Panel I/O ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX Motherboard
Front Panel I/O:
AAFP
Audio ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX Motherboard
Wi-Fi:
No
Bluetooth:
No
Module Support:
1 E Key M.2
Software ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 24.4 x 24.4 cm
