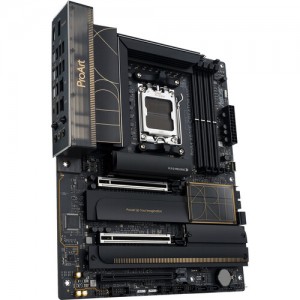

ASUS ProArt X870E-Creator WiFi AM5 ATX specs
Motherboards Specs >> ASUS >> ASUS ProArt X870E-Creator WiFi AM5 ATX| Specifications | | | Reviews |
General Specs ASUS ProArt X870E-Creator WiFi Motherboard AM5 ATX
Chipset:
AMD X870E
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4000 MT/s
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
Expansion Slots:
2x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU ASUS ProArt X870E-Creator WiFi Motherboard AM5 ATX
Chipset:
AMD X870E
CPU Socket:
AM5
Back Panel I/O ASUS ProArt X870E-Creator WiFi Motherboard AM5 ATX
USB:
Universal Serial Bus
Universal Serial Bus2x USB-C (USB4)
1x USB-C (USB 3.2 Gen 2x2)
7x USB-A (USB 3.1/3.2 Gen 2)
1x USB-A (USB 2.0)
1x USB-C (USB 3.2 Gen 2x2)
7x USB-A (USB 3.1/3.2 Gen 2)
1x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort Input
1x DisplayPort Input
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Marvell AQtion 10GbE
1x Intel 2.5Gigabit
1x Intel 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Clear CMOS
Memory ASUS ProArt X870E-Creator WiFi Motherboard AM5 ATX
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4000 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered
Storage Expansion ASUS ProArt X870E-Creator WiFi Motherboard AM5 ATX
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10
Internal I/O ASUS ProArt X870E-Creator WiFi Motherboard AM5 ATX
Expansion Slots:
2x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
3x USB 2.0 Header (Supports 6 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
3x USB 2.0 Header (Supports 6 USB-A Port)
Air Cooling:
2x 4-Pin CPU
5x 4-Pin System
5x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
2x 8-Pin ATX
Security:
Chassis Intrusion
LED Header:
3x RGB
Audio:
No
Diagnostics:
2-Digit Debug LED, Clear CMOS, Flash BIOS
Legacy:
1x Serial
BIOS ASUS ProArt X870E-Creator WiFi Motherboard AM5 ATX
ROM:
256 Mb
Front Panel I/O ASUS ProArt X870E-Creator WiFi Motherboard AM5 ATX
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2
Audio ASUS ProArt X870E-Creator WiFi Motherboard AM5 ATX
Audio Codec:
Realtek S1220A (7.1-Channel)
DAC:
No
Wireless ASUS ProArt X870E-Creator WiFi Motherboard AM5 ATX
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Software ASUS ProArt X870E-Creator WiFi Motherboard AM5 ATX
OS Compatibility:
Windows 11
Physical ASUS ProArt X870E-Creator WiFi Motherboard AM5 ATX
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
